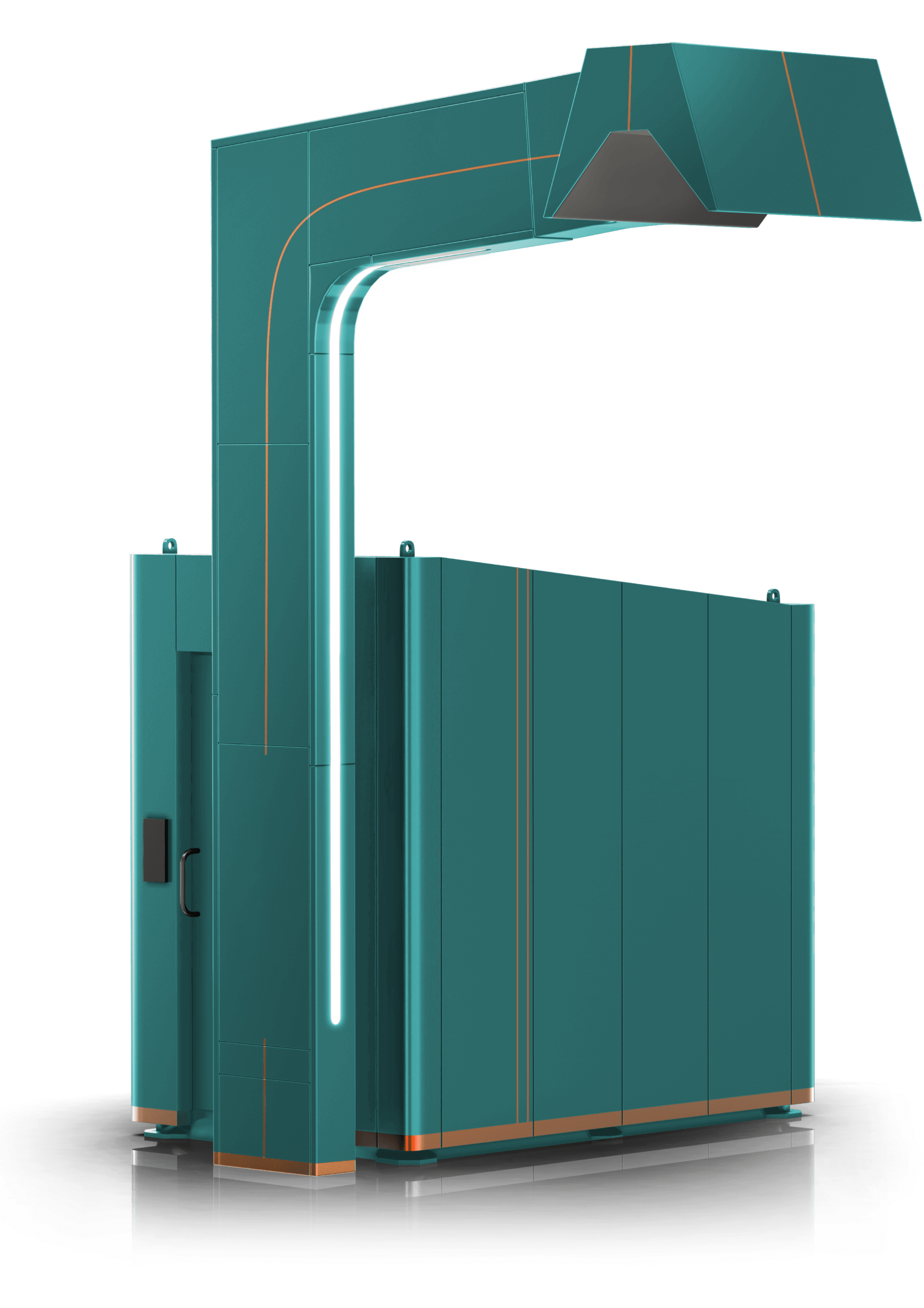

Tornado is a unique ultra-fast solution for 24/7 operation in extreme weather conditions. Designed for AC and DC grid operation with unstable input voltages. The station design allows for all-weather service from inside and can be supplied with both a charging dome and a CCS charging cable.
ELECTRIC BUS STATION
FOR FLEETS AND URBAN
INFRASTRUCTURE
FOR FLEETS AND URBAN
INFRASTRUCTURE
SUPPLY INPUT
WORKS AT
POWER UP TO
ALL-WEATHER
SERVICE INSIDE
500KW
STAINLESS STEEL
IP 54
IK 10
TOTAL SAFETY
FIREFIGHTING SYSTEM
DC
AC
VIDEO SURVEILLANCE SYSTEM
CCS COMBO 2
CONTACT DOME
HIGH-SPEED
OVERVOLTAGE
PROTECTION UNIT
OVERVOLTAGE
PROTECTION UNIT
MORE THAN JUST OCPP 1.6 FUNCTIONALITY
UNIQUE STATION MONITORING AND CONTROL SYSTEM
DATA SECURE
REAL-TIME REMOTE CONTROL AND UPDATE
OVER 120 STATION PARAMETERS MONITORING
SMART POWER MANAGEMENT
CONNECTOR TYPE
CCS Combo 2, Contact Dome
OUTPUT POWER
Up to 500 kW DC
OUTPUT VOLTAGE
200-750 V (up to 1000 V)
OUTPUT CURRENT
Up to 500 A
SUPPLY INPUT
400 V (±10 %), AC 3ø or 400-800 V, DC
SUPPLY FREQUENCY
50/60 Hz +/- 10%
IP RATING
IP54
IK RATING
IK10
OPERATING TEMPERATURE
-40...+50 °С
DIMENSIONS (HXWXD)
Body 2782x1914x2876 mm
Contact Stand 4920x250(1385)x3339 mm
Contact Stand 4920x250(1385)x3339 mm
BODY
Inside: steel.
Outside: stainless steel
Outside: stainless steel
HPC CABLE (WITH LIQUID COOLING)
Optional CCS Combo 2
NETWORK CONNECTION
3G/4G/LAN/Wi-Fi
COMMUNICATION PROTOCOL
OCPP 1.5/1.6+
FIREFIGHTING SYSTEM
Yes
VIDEO SURVEILLANCE SYSTEM
Yes
MEASUREMENT
Electricity meters
ENERGY MANAGEMENT
Limited charge current
PROTECTION
Overvoltage, overload, short-circuit protection, current-leakage protection, overheating protection, lightning protection.
Provide technical and consulting support for our clients at all stages of the project.
